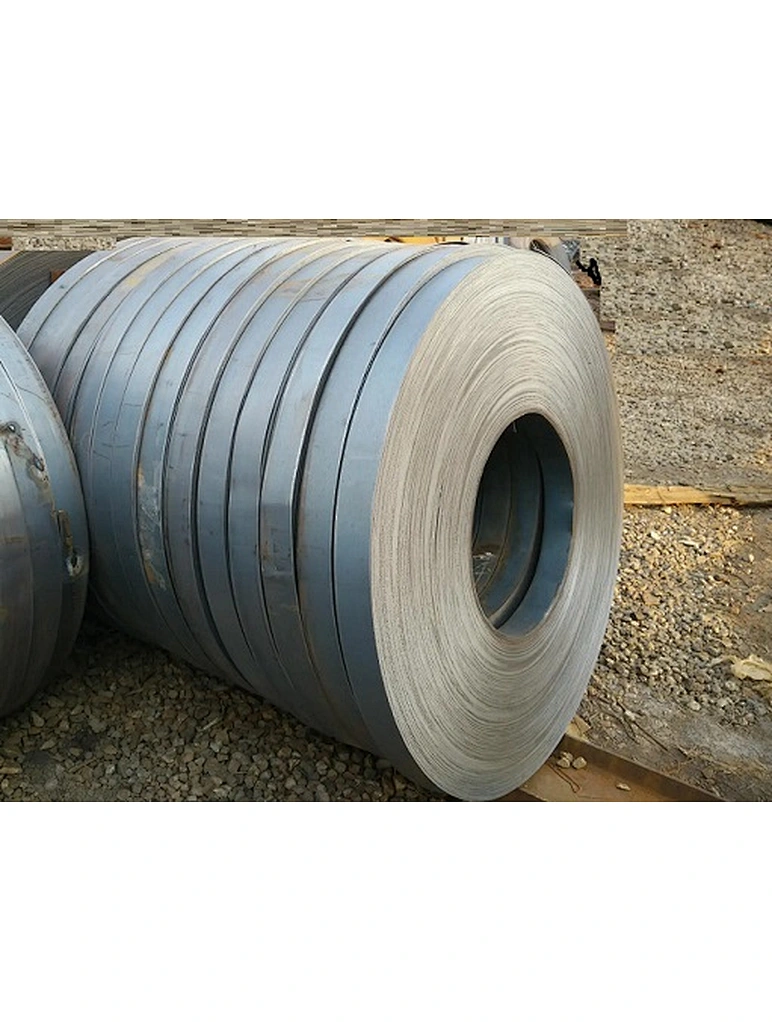

Hot Rolled Strip
HRC-STP
TYPE I: Hot Rolled from Steel Billet
TYPE II: Slitted from Steel Coil
TYPE II: Slitted from Steel Coil
Quantity
hot rolled strip
EN10025 S235JR, EN10025 S235JR, S275JR, S355JR
JIS G3132：SPHT1, SPHT2, SPHT3, SPHT4
JIS G3101: SS400, SS490, SS540
API 5L B, API 5L B
hot rolled strip - width：less than 600mm
hot rolled strip - mechanical properties
Standard-Grade - T.S.(≥Mpa) - Y.S.(≥Mpa) - EL.(≥)
EN10025 S235JR - 360~510 - - 235 - - 26% -
EN10025 S275JR - 430~580 - - 275 - - 22% -
EN10025 S355JR - 510~680 - - 345 - - 22% -
JIS G3132 SPHT1 - >=270 - - 37% -
JIS G3132 SPHT2 - >=340 - - 32% -
JIS G3132 SPHT3 - >=410 - - 27% -
JIS G3132 SPHT4 - >=490 - - 22% -
JIS G3101 SS400 - 400~510 - - 245 - - 21% -
JIS G3101 SS490 - 490~605 - - 280 - - 19% -
JIS G3101 SS540 - >=540 - - 400 - - 16% -
API 5L B - 414~758 - -241~448-
