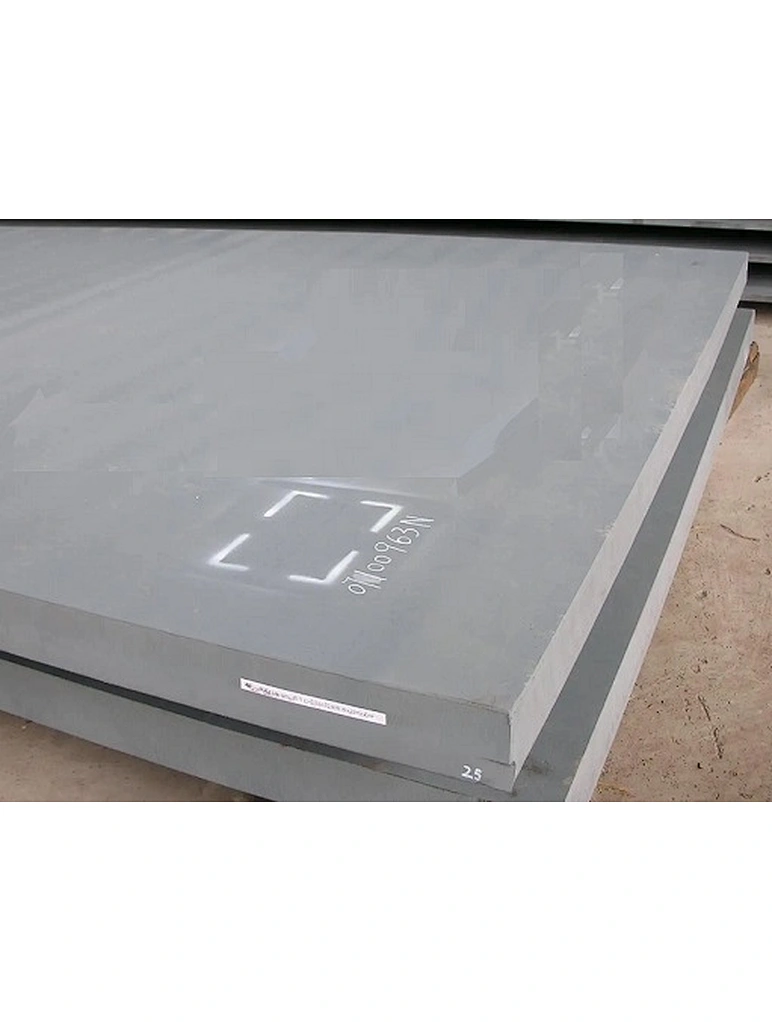

HRP - 1045 Steel Plate
HRP-FMS
For Making Machine Part
Quantity
Standard & Steel Grade
DIN EN 10084: C15E, C20E
DIN EN 10084: C30E, C35E
DIN EN 10084: C45E, C50E
JIS G4051: S10C-S50C
ASTM A29: 1015 - 1050
SAE 1020 steel: SAE 1020 steel sheet, SAE 1020 steel plate
ASTM 1045 steel plate, SAE 1045 steel plate，AISI 1045 steel plate
Chemical Composition (%) - JIS G4051
Grade S10C | S15C | S20C | S45C |
-C- 0.08~0.13 | 0.13~0.18 | 0.18~0.23 | 0.42~0.48 |
-Si- 0.15~0.35 | 0.15~0.35 | 0.15~0.35 | 0.15~0.35 |
-Mn- 0.30~0.60 | 0.30~0.60 | 0.30~0.60 | 0.60~0.90 |
P<= 0.030 | 0.030 | 0.030 | 0.030 |
S<= 0.035 | 0.035 | 0.035 | 0.035 |
